N5693P Piper Comanche 250

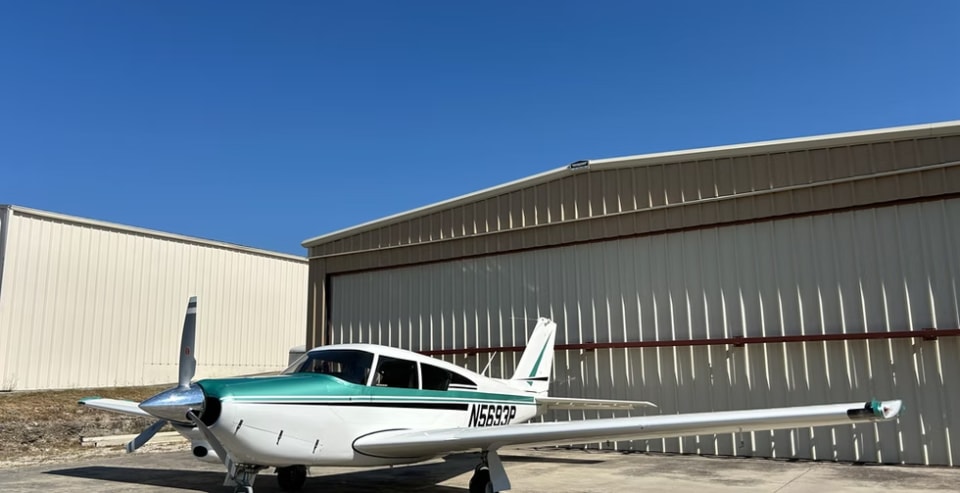

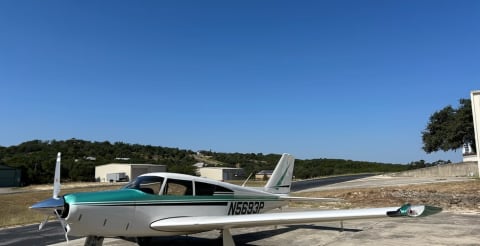

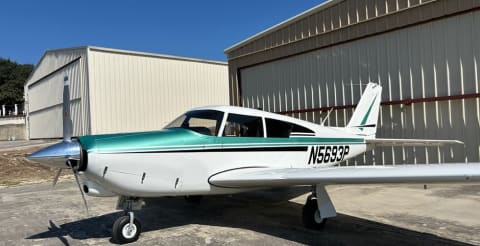

Piper Comanche 250 (N5693P) — Sold in Spring Branch, TX, USA. Call for price.
Specifications
- Price
- Call for price
- Status
- Sold
- Year
- 1959
- Location
- Spring Branch, TX, USA
- Airframe total time
- 4,740 hrs
- Engine time
- 440 hrs
- Propeller time
- 440 hrs
Overview
Mason Amelia presents, N5693P, a 1959 Piper Comanche 250**, restored with craftsmanship that rivals a Singer Porsche! The refurb process took nearly a decade and completed by the owner, a life-long aviation maintenance safety professional, to include custom fabricated parts, such as a carbon fiber air scoop, re-engineered flooring and side panels by FAA field approval, and even NASA-produced, custom sewn firewall blanket with flame-resistant certified Velcro... Did we mention modified counterweights in the engine that allow for 2,700 RPM takeoffs at 260 horsepower?
There are well over 50 meticulously documented STCs/speed mods, new glass and lenses, plastics, paint that still looks wet, and the cleanest landing gear & wheel wells I’ve ever seen on any aircraft of any age… just to scratch the surface of this bespoke Comanche!
N5693P was refurbed to show like new in factory spec, appropriate to its year of production but improved upon. Then, the plane spent the next three decades as the family’s heirloom. Now, it’s ready to be passed on to the next aviator who is looking for Cirrus-level performance with the “soul” of a classic aircraft.
Contact Donny to learn more about this one-of-a-kind Comanche!
Details
General
N5693P
Airframe
Total Time 4740 hours
Engine
Lycoming O-540-A15 with Counterweight STC (260HP)
Engine Time 440 hours SMOH
Engine TBO 2000
Slick Mags
Sky-Tec Starter
Lord Engine Mounts

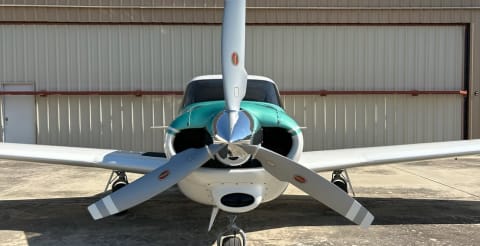

Propeller
Hartzell Three-Bladed Aluminum
Constant Speed
2700 RPM
Prop Time 440 hours SNEW
Avionics
Garmin GTX 345 ADS-B In/Out Transponder
Apollo GX55 IFR Moving Map GPS
King KMA-20 Audio Panel
PS Engineering PM1000 Intercom
King KX170B NAV/COMM Transceiver (qty.2)
Davtron M655 Density Alt/Pressure Alt/ OAT/Temp/Voltage
Electronics International EC-1 EGT/CHT
All new gauges
Newly cut panel
New glare shield
Equipment
Leonard Spall Shoulder Harnesses
Pilot Side Toe Brakes
Carbon Fiber Air Scoop
Carbon Fiber Main Landing Gear Doors

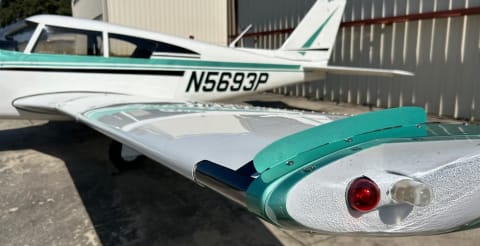

JAS High-Performance Wingtips
Aero-Tech Fuel Bladders
Too many more to list…
Interior
9.5/10
Exceptional Interior Condition
Re-engineered Flooring and Side Panels
The Carpeting
Headliner
Seats are all in almost new condition

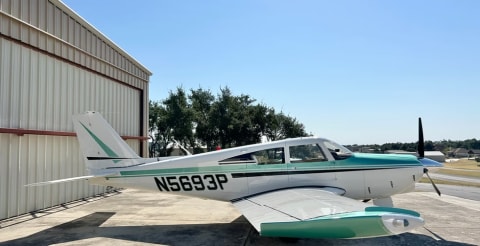

Exterior
9.5/10, Exceptional Paint Condition
Imron White Basecoat, Acry Glo Metallic Mint Green Saddle
Imron Metallic Black Accent Striping
