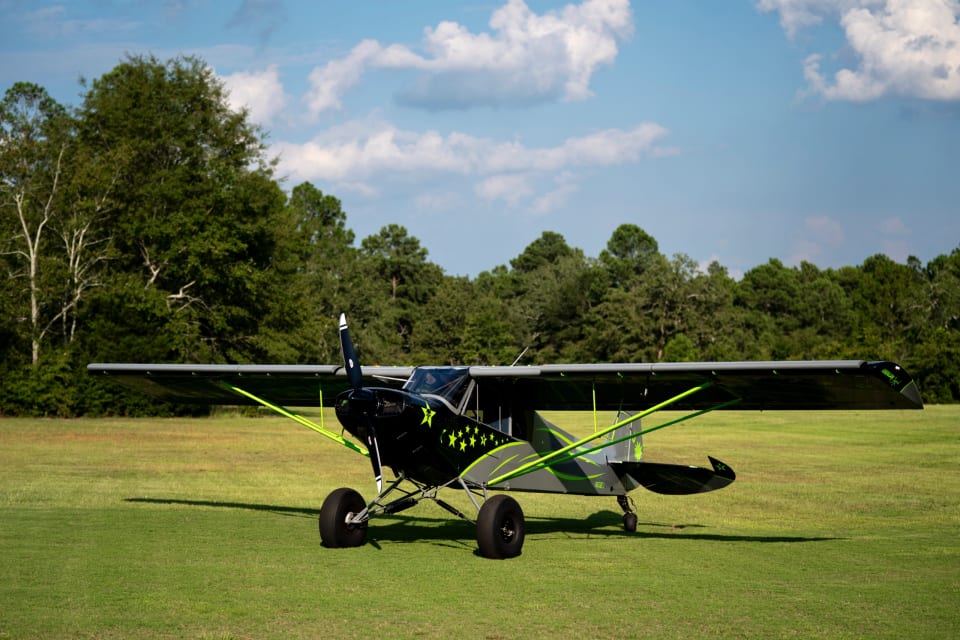

N56FJ 2023 American Legand PA18 MOAC
2023 American Legand PA18 MOAC (N56FJ) — Sold in Columbia, SC, USA. Call for price.
Specifications
- Price
- Call for price
- Status
- Sold
- Year
- 2023
- Location
- Columbia, SC, USA
- Airframe total time
- 90 hrs
- Engine time
- 90 hrs
- Propeller time
- 90 hrs
Overview
Donny Gabriel with Mason Amelia, proudly introduces the country’s most tricked-out 2023 American Legend MOAC! Call it a beast, a monster, a titan, or… Punisher – all fitting names. Take the cubs apex lineage, loaded to the teeth with legendary attributes, there’s only one appropriate title – MOTHER OF ALL CUBS.
Does your dream STOL machine have slats? Does it have an avionics stack that competes with the newest executive jets? Does it have showstopping custom aesthetics? Does it have a ridiculous suspension and landing gear setup? Does it have a stall speed of only 27 knots? Does it have a fresh and thoughtfully modified 200-HP Lycoming IO360? Does it have three seats? Does it have two baggage doors as well as two cockpit doors? THIS STOL MONSTER DOES. The question should really be, what doesn't it have?
Take off in only 200 feet at max gross, pop open both windows and both doors for some air conditioning, take a nice IFR cross country if you’d like (yep, it's IFR certified), and land on a friend’s driveway when you’re done. You’ll be smiling ear to ear!
For more information on this one-of-a-kind Cub on steroids, call/text Donny Gabriel.
Details
General
N56FJ
Airframe
Total Time: 90 hours
Max Takeoff Weight 2000 lbs
Useful Load 800 lbs
Engine
Lycoming IO360 A1B6 200HP (Wide Deck Engine)
90 hrs SMOH
Crankshaft Counterweight
E-MAG P-Mags w/ backup battery
Superior Air Parts Cold Air Intake
Remote Operated Dual Oil Cooler with RAM Air
Vetterman Exhaust
Engine Baffle Kit
Propeller
Sensenich 2 Blade 82” Ground Adjustable
90 hrs SNEW
Carbon Fiber Spinner

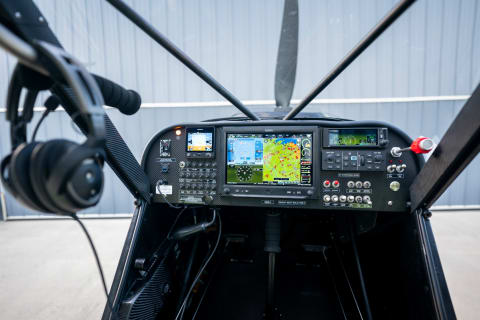

Avionics
Garmin G3X 10.6” Touch PFD/MFD/EIS
Garmin GNX375 - GPS w/ integrated GTX-45R ADS-B In/Out Transponder
Garmin Remote Mount GTR-20 VHF Comm.
Garmin GFC500 Autopilot w/ Pitch Trim (2-axis, 3-servo)
Garmin G5 BackUp AHRS w/ GMU11 Magnetometer and Battery Backup
Garmin Connext Wireless Bridge
Garmin Flight Charts
Garmin Synthetic Vision
Garmin Safe Taxi
Bose Lemmo Style Headset Plugs
406 Mhz ELT w/ Remote Switch
Stratus Dual USB Ports for Cockpit and Baggage Compartment (Type A/Type C)
Equipment
XP Performance Kit (Square Wingtips, Extended Flaps and Ailerons, 20% Larger Rudder)
TK1 HD Monster Shock Strut System
3x3 Extended HD Landing Gear
31” Desser Tundra Tires
10” Grove Wheel Hubs and Brakes
Grove Dual Piston Brake Calipers
3200B Baby Bushwheel Tailwheel
Acme Stinger Tailwheel Suspension
Toe Brake System
3rd Seat Option
Extended Baggage Compartment with Custom Molle Paneling
Turtle Deck Hatch (large door on top of empennage)
Extended Flaps
Long Range Fuel (40 gal)
Larger Rudder
Leading Edge Slats
Airframes Alaska 2000 lb Aluminum Wing Struts
Sea-Plane Float Bracket Kit
AERO LED Landing Lights
AERO LED Strobes and Position Lights
AERO LED Wig-Wag Underwing Retractable Lights
Interior
New Condition

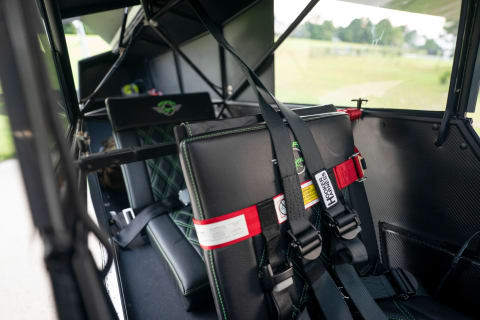

Custom Carbon Fiber Interior Package w/ Custom Full Grain Leather Seats
Black Seats with Matching Lime Green, Diamond stitching, and 4-Point Hooker Harnesses Inertia Reels for seats One and Two
The Third Seat Has a Standard Lap Belt
Exterior
New Condition
Custom Paint on Randolph Star Gloss Fabric
Black, Grey, and Lime Green. All Graphics and Paint Layers are 100% Painted
Tail Number and Vertical Stab Graphics (Vinyl)
